See your event model

Open a .play model and follow a feature from the screen to its command, events, and read model. The same event model board is available in VS Code, an MCP App, your running Arc application, the CLI’s browser explorer, and Cratis Studio. You do not need to redraw the diagram for each place.

Allow about 10 minutes. Start in VS Code, then choose the other place that fits your work. You need VS Code with its code command on PATH and a .play model. For a ready-made example, open the Commerce sample from a Screenplay checkout; keep the whole folder, not just one slice file. The AI path needs .NET 10 and an MCP Apps-capable host. The code paths need a compatible .NET SDK, restored project dependencies, and the Cratis CLI.

Open the board in VS Code

1. Install the extension:

   code --install-extension cratis.screenplay

2. Open your model’s folder in VS Code, then open a .play file. For Commerce, choose Ordering/Orders/PlaceOrder.play. The extension opens the board by default, compiles the surrounding application, and draws the open file’s slices. Open the root application.play to see the whole model.

3. Choose Show Source in the editor title bar. Edit the text beside the board and watch it redraw. Pan to a slice and use View to show properties or switch between Full and Overview.

Extension 4.48.1 in code-server, showing Commerce. Newer versions focus the board on the open file’s slices; open application.play for the whole application.

You have succeeded when you can find PlaceOrder, the OrderPlaced event it produces, and the specifications below the slice. The text remains the source of truth. See VS Code extension for editor associations and folder rules.

Command details list each production route override on its own line. They also show composite reads as named mappings. Query details include every named key part. Read-model key fields carry a key label in their schema. Reaction descriptions show Observes Source.Stream; reducer observation appears in slice details. These are authored declarations, not inferred runtime outcomes.

Explicit specification routes appear in the specification header, labeled by given, when append or then occurrence. The summary retains for, stream Source.Stream, scalar streamId values, named composite part mappings in authored order and no stream assertions, including when event cards show the linked event’s current name instead of the step’s name. Headers wrap so long route summaries remain readable. Payload values and event links stay unchanged. The board shows authored expectations, not test results. The reference runner checks these route assertions in ESM v8; drawing them alone does not prove they pass.

Specification headers also show deterministic generated fixtures, labeled not request inputs, scalar or record then returns assertions, and every then no readmodel ... for ... absence assertion with its key. These summaries keep response expectations and missing read-model instances visible without turning them into event cards or command inputs. Like the rest of the board, these are specification expectations, not test results; use the specification runner to check them.

Typed examples show their effective values: inherited event, command and read-model fields are expanded, and a value stated on the step overrides the example’s value. Event routes are inherited or replaced as a whole. Event links point to the example’s underlying event declaration, not the example name. Inherited generated fixtures remain separate from request inputs. Headers show given and expected read-model values, retaining exactly where it is stated.

A when redelivered action shows the event, target reaction, optional for selector and stream or no stream route, with its payload values on the action card. It does not become an append or another command. Refusal outcomes retain their ordinary presentation: then error carries a validation or constraint refusal message, then denied is an authorization denial, and expected refusal facts remain event cards. An explicit then no events appears in the header rather than as a fabricated event or error. Redelivery and no-event expectations appear on the board as executable assertions; drawing them does not prove once-only delivery. See redelivery specifications. Specifications without these header details keep their titles.

Ask for the board in an AI chat

Install the standalone tool if you do not already have it:

dotnet tool install --global Cratis.Screenplay.Tool
screenplay mcp ./specifications

Replace ./specifications with an existing physical model directory. This starts a stdio server, not a browser; your host normally launches the command for you. For example, put this in VS Code’s .vscode/mcp.json when the workspace contains that directory:

{
  "servers": {
    "screenplay": {
      "type": "stdio",
      "command": "screenplay",
      "args": ["mcp", "${workspaceFolder}/specifications"]
    }
  }
}

Other hosts use their own configuration format with the same command and arguments. Connect, then ask: “Show my event model with visualize-model.” The host must advertise io.modelcontextprotocol/ui; without MCP Apps support, visualize-model is not offered.

The board requires Cratis.Screenplay.Tool 4.47.0 or later, or CLI versions that bundle Screenplay 4.47.0 or later. CLI hosting itself shipped in 3.11.0: you can use cratis screenplay mcp ./specifications instead, with command cratis and args ["screenplay", "mcp", "${workspaceFolder}/specifications"]. An older CLI can host MCP without offering the board. See Install the MCP server for setup and recovery.

Use the same tool in three ways:

You want to see	Call visualize-model with	What happens
The model on disk	{}	Draws the application under the server root.
A proposed change against disk	{"proposalId": "<proposalId>"}	Current and Proposed switch between disk and the retained authoring proposal.
A what-if that writes nothing	A sketch array of whole documents, each with path and source	Overlays the scratch documents on disk for this view only; it does not retain or apply them.

Ask the assistant to pass either proposalId or sketch, never both. A sketch replaces the whole document at each supplied path, not a fragment of it. Paths are relative to the model root. For multi-file sketches, use Screenplay 4.59.1 or later, or a CLI that bundles it; older versions such as 4.48.0 have sketch-path failures. Keep the original files intact. The MCP board guide shows the argument shapes.

Captured in a minimal MCP Apps test host (a local capture harness), not a commercial chat host. This capture uses a single-file Commerce adaptation and an unsaved Notifications sketch.

Viewing never applies a proposal. Keep approval enabled for apply and recover-workspace, and review the exact plan before allowing writes.

Open it in your running Arc app

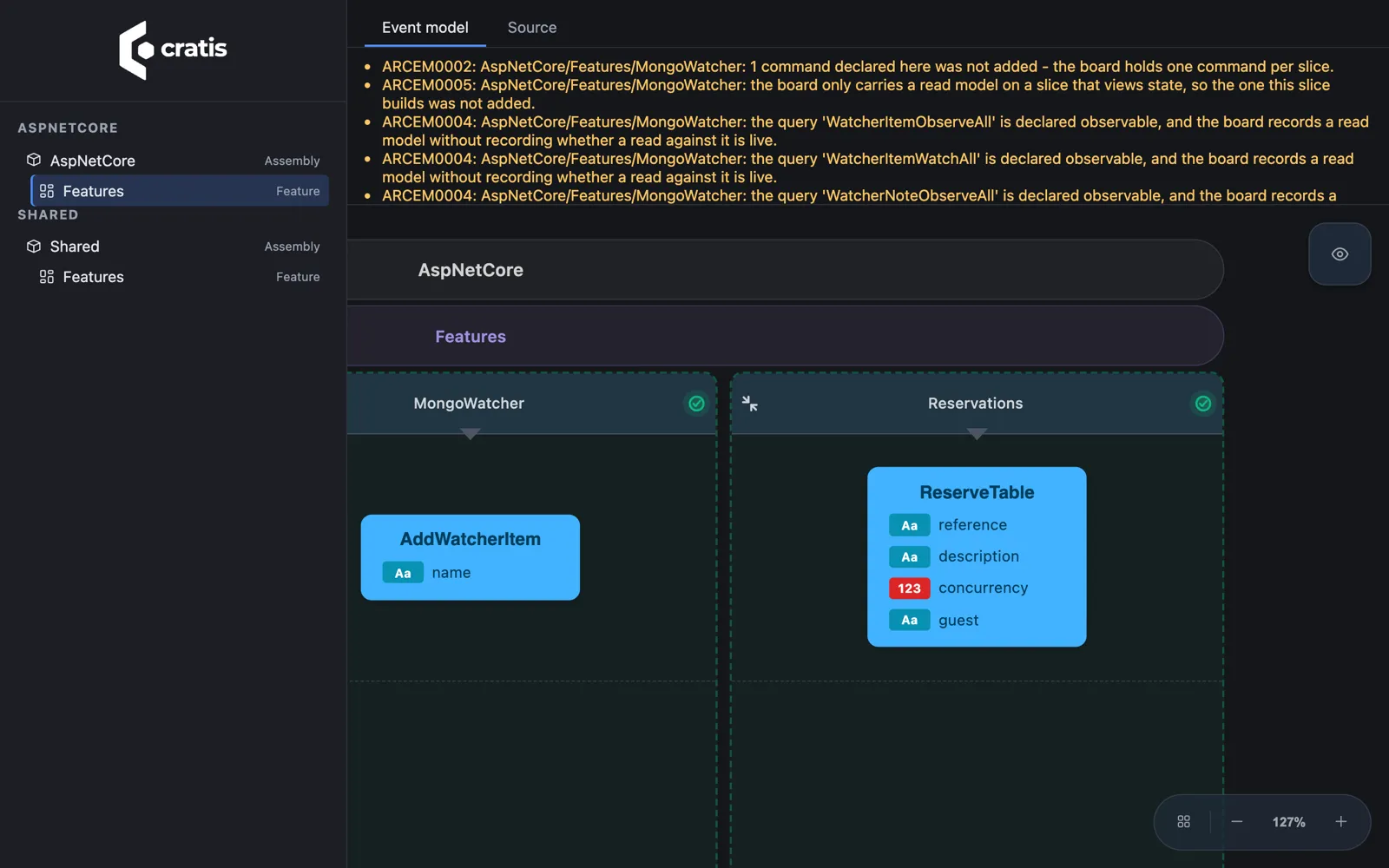

For an ASP.NET Core application using Arc, add Cratis.Arc.Screenplay.Embedded and follow Arc’s embedded event-model setup. Build and run the app, then open /.cratis/event-model/ on its local address. Select a project or feature; switch to Source to inspect its generated .play.

The route is development-only by default. Automatic hosting through the Cratis metapackage needs a Debug (non-optimized) build and the Development environment. Calling app.MapCratisEventModel() or setting Enabled = true still opts in wherever the app runs, so guard explicit mapping with app.Environment.IsDevelopment() or require authorization. The Arc guide covers disabling generation and protecting the route. This board reads source-derived resources embedded during the build, not stored events or live business data.

The Arc AspNetCore sample is not event-sourced: its event lanes are empty. Conversion warnings remain visible.

View a project without starting its app

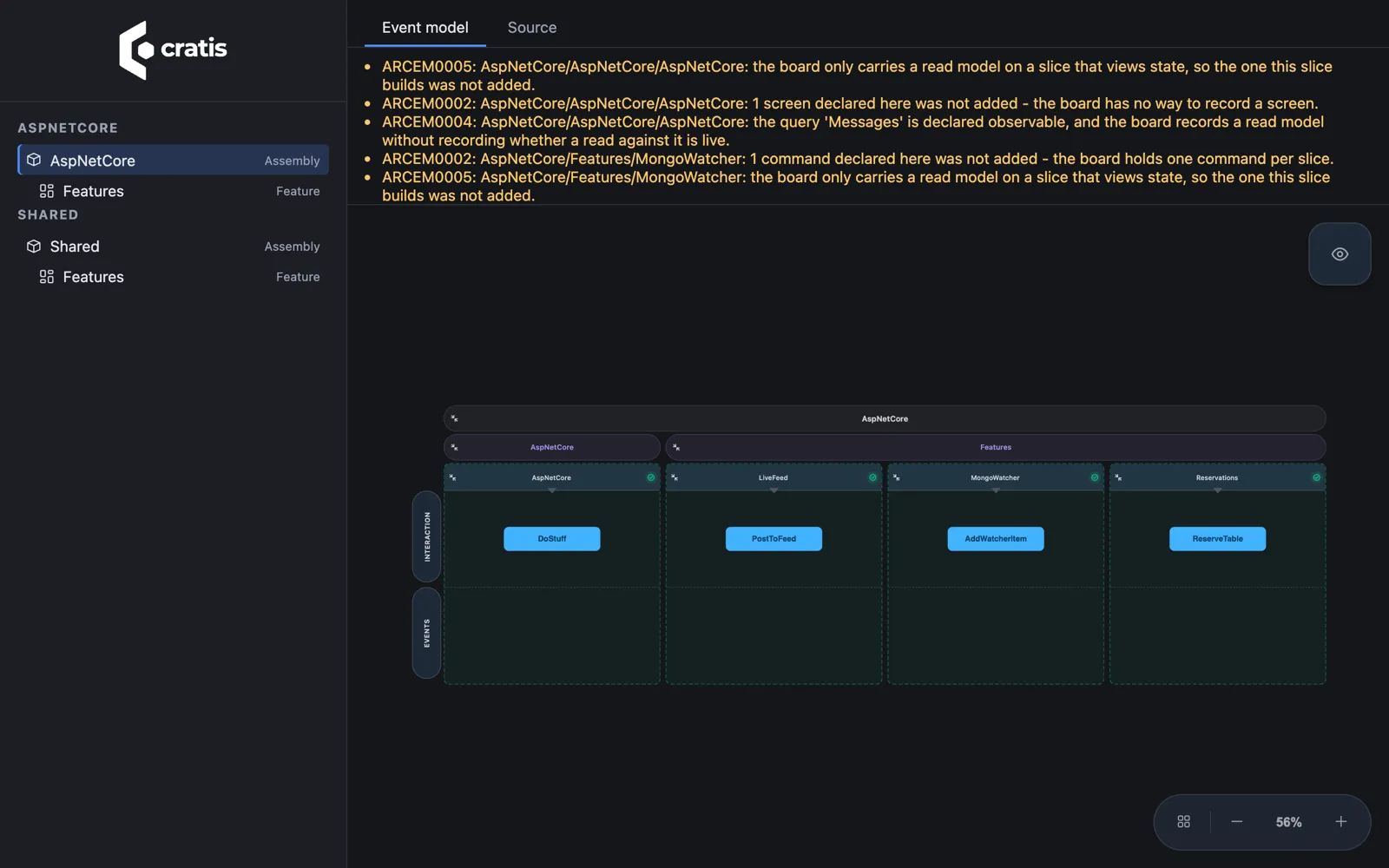

With CLI 3.23.0 or later, point the browser explorer at your project:

cratis view ./MyApp/MyApp.csproj

The CLI serves the explorer on loopback and opens your browser. It reads embedded documents from built output (Debug by default), or generates them in memory when none are available. Select a document to see the board. Stop the terminal process with Ctrl+C when finished. Use --from-source to regenerate rather than read embedded output, or --no-browser to open the printed URL yourself.

The CLI and runtime routes use the same explorer; neither starts the business application to inspect its model.

Share a public model with Studio

The anonymous viewer needs no account:

https://view.cratis.studio/?url=<public .play URL>

Replace the placeholder with a URL-encoded, publicly accessible raw .play URL, not a GitHub HTML file page. The anonymous viewer works with self-contained, single-file models supported by its compiler; it does not follow file imports yet. A Commerce slice is a fragment, and its root imports the other files. Do not expect either URL to load that sample. Never put a private model URL, access token, or customer data into a share link.

For editing, sign in to Cratis Studio. Import a Screenplay .play file or a folder zip into an event model, review the import’s warnings, and accept only what you intend to keep. Export either a single .play document or a folder zip to bring the model back to your editor. Review the exported source: canvas import/export is not a lossless round trip for every language construct.

Get a model from existing code

If your code came first, generate the structure it already declares:

cratis screenplay generate ./MyApp/MyApp.csproj --provider arc --file MyApp.play

Use arc for Arc/Chronicle source, marten for Marten, or critter-stack for Marten with Wolverine. Omit --provider for automatic detection. Generation reads a Roslyn compilation; it does not start the app or connect to its event store. Read the diagnostics before treating the output as complete. See Arc generation and the Critter Stack guides.

Treat the generated model as a starting point to review, not a reconstruction of the system. Open the generated file in VS Code. In CI, validate it and fail on warnings:

cratis screenplay validate ./MyApp.play --warnings-as-errors

With no path, validation checks the current directory as one application. Use a CLI bundling a compiler that understands your model’s syntax. The standalone alternative is screenplay ./MyApp.play --warnaserror; its flag is different.

Know what the picture does not prove

• A board is a visualization, not execution. The editor and browser boards parse and draw the model; they do not run commands or specifications.
• Drawing is not full validation. Boards can draw partial models with errors. Use the compiler and CI validation for acceptance, not the presence of cards.
• Generation is not full reconstruction. It recovers recognized source declarations, not arbitrary handler logic, every UI detail, or runtime behavior. Diagnostics and conversion warnings describe gaps; do not hide them.
• Versions matter. A released surface can bundle an older compiler. MCP Apps support, CLI hosting, language support, and viewer support are separate checks.
• Sharing exposes structure. Keep runtime routes local and public viewer URLs public-safe. No viewing step here requires applying an AI proposal.

Next, model your first feature or review a change with MCP.
